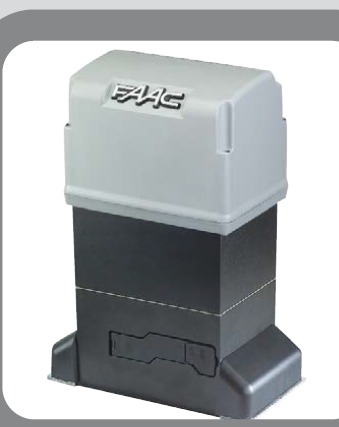

SLIDING GATE OPERATOR 844 R 380V-MC- 3PH
Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device
and encoder.
• Inductive limit switch.
• Designed for height and side adjustable fastening.
Power supply voltage -380-415V~ 3PH+N 50/60 Hz
Electric motor Asynchronous three-phase
Max. power 950 W
Max. torque 62 Nm (*)
Max expressed force 2500 N (Z12) - 1900 N (Z16) - 1500 N (Z20) (*)
Reduction ratio 1:30
Max. leaf width 30 m (Z12) - 40m (Z16) - 50 m (Z20)
Leaf speed 7.2 m/min (Z12) - 9.5 m/min (Z16) - 12 m/min (Z20)
Speed adjustment and motor control No
Limit switch Inductive with metal sheet
Pinion No
Encoder No
Force adjustment Twin-disk clutch in oil bath
Operating ambient temperature -20°C ÷ +55°C
Thermal protection 155°C
Protection class IP44
Weight 15 Kg
Type of oil FAAC HP OIL
Dimensions (LxDxH) 277 x 155 x 388 mm
Max. leaf weight 2.200 Kg (Z12) - 1.800 Kg (Z16) - 1.000 Kg (Z20)
Use frequency 70%
Electronic equipment Built-in
