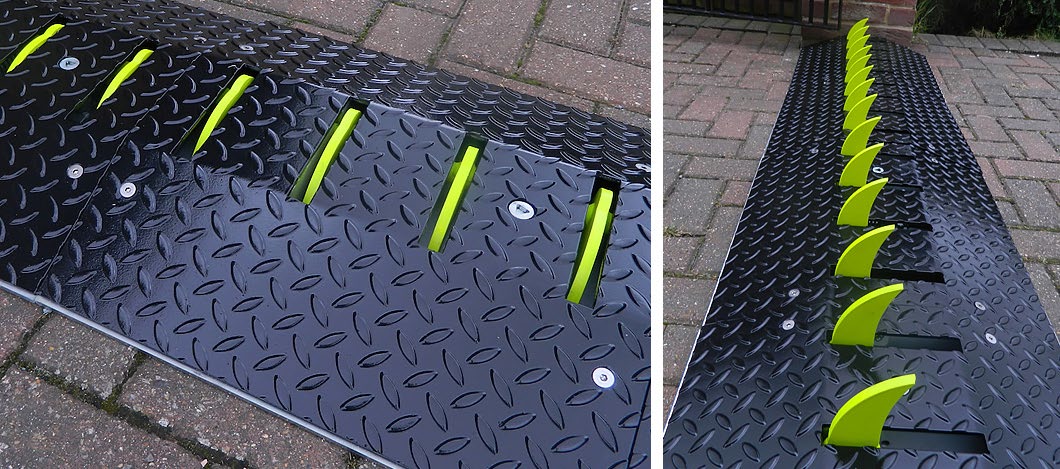

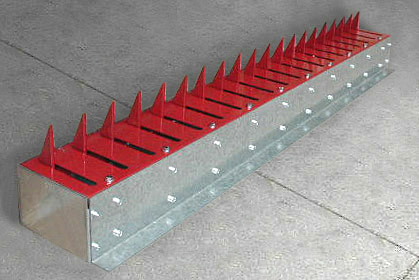

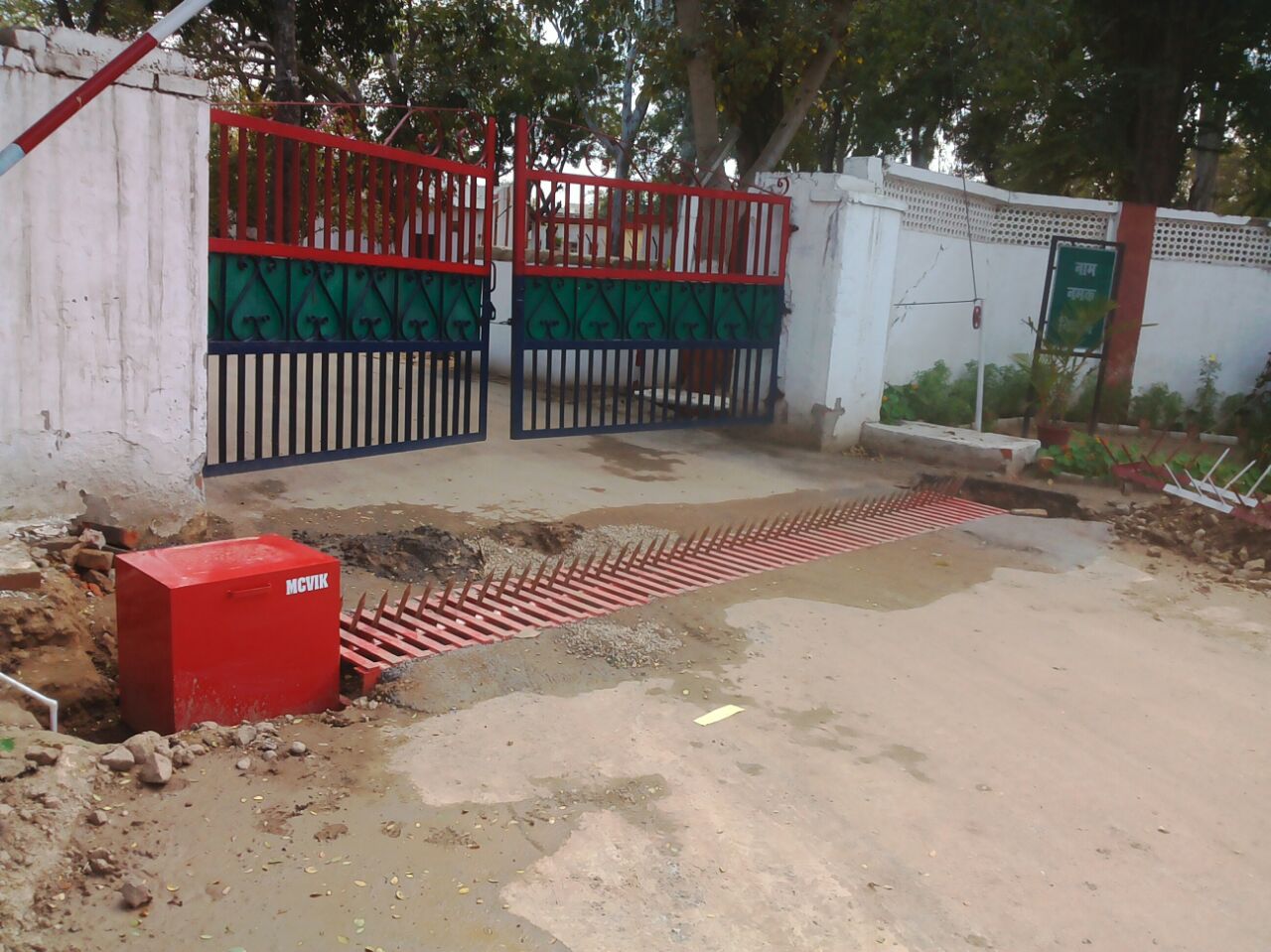

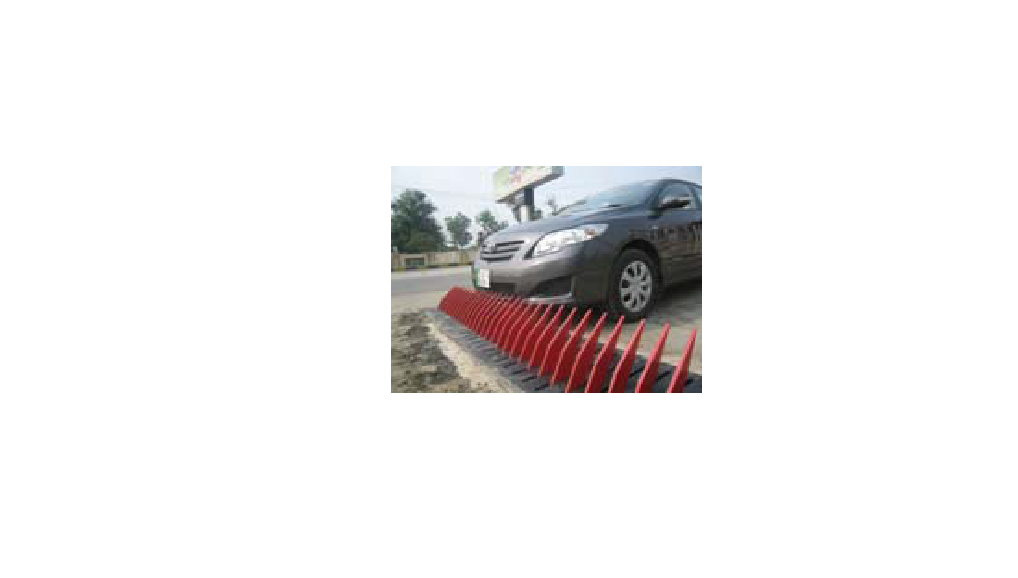

TYRE KILLER PROVIDES AN ADVANCE OPERATION TO CONTROL ACCESS SMOOTHLY
AND EFFECTIVELY BY BASIC OPERATION, AND ALSO PREVENT ILLEGAL IN AND OUT. THE MACHINE IS WELL IN
DESIGN, RUSTPROOF, DURABLE AND CAN RESIST EXTERNAL DESTROY. ACCORDING TO DIFFERENT MACHINE
CENTERS, INTELLIGENT DRIVE UNIT THROUGH ADVANCED CONTROL UNIT CAN BE DIVIDED INTO FULLYAUTOMATIC
AND SEMI-AUTOMATIC. THEIR DIFFERENCES ARE FULLY AUTOMATIC PRODUCT CAN FINISH ANY
WORK BY POWER. THE TYRE KILLER CAN BE OPERATING THROUGH HAND PUMP WHEN IT IS POWERED OFF IF
REQUIRED. AND AFTER POWERED UP & SHIFT TO AUTOMATIC MODE AGAIN TYRE KILLER IS READY TO OPERATE.
Unit- Single
Drive Unit -Hydro-Static
Power Supply Type- Single Phase / Three Phase 230 VAC / 440 VAC & 50/60 Hz
Electric Motor Capacity- 0.85kw to 4.0kw
Protection Class- IP55
Spike Height- 150-300mm
Tyre Killer Length- 2 meter-8 meter
Wheel Load- 60 KN
Impact Load- Appx. 30 KN
Vertical Load -60 KN Vertically (20 T / Axle)
Finish Galvanized and Plastic Coated 4S – Coating
Surface Protection Galvanized & Plastic Coated
Operation Time Raising 1 second & Lowering 1 second
MTBF- 1 Million Cycle
Duty Cycle- 100%
HYDRAULIC PREAAURE- 120 BAR
Operating Panel 1.From both side of Mini Tyre Killer through Push Button with key switch control
2.From Remote Control up to 10 meter range
Operating Temperature Range -5º C to +65º C
Power Failure/Emergency
Operation
1.By hand through hand-pump
2.By U.P.S. Power for uninterrupted 2 operations-Up-Down
Electric Controls, Inside Outdoor
Enclosure
Steel or Glass fiber reinforced cabinet
Material of Construction Carbon steel with powder coated finish or stainless steel in Grade 4 finish
Integration Capable of Integration with the overall architecture of Surveillance & Access
Control System
Available Color Yellow-Black, Red-White
APPLICATIONS:
† OFFICE BUILDING
† GOVERNMENT
+ AIRPORTS
† HOTEL
† DEFENCE
† BANK
† TOLL PLAZA
