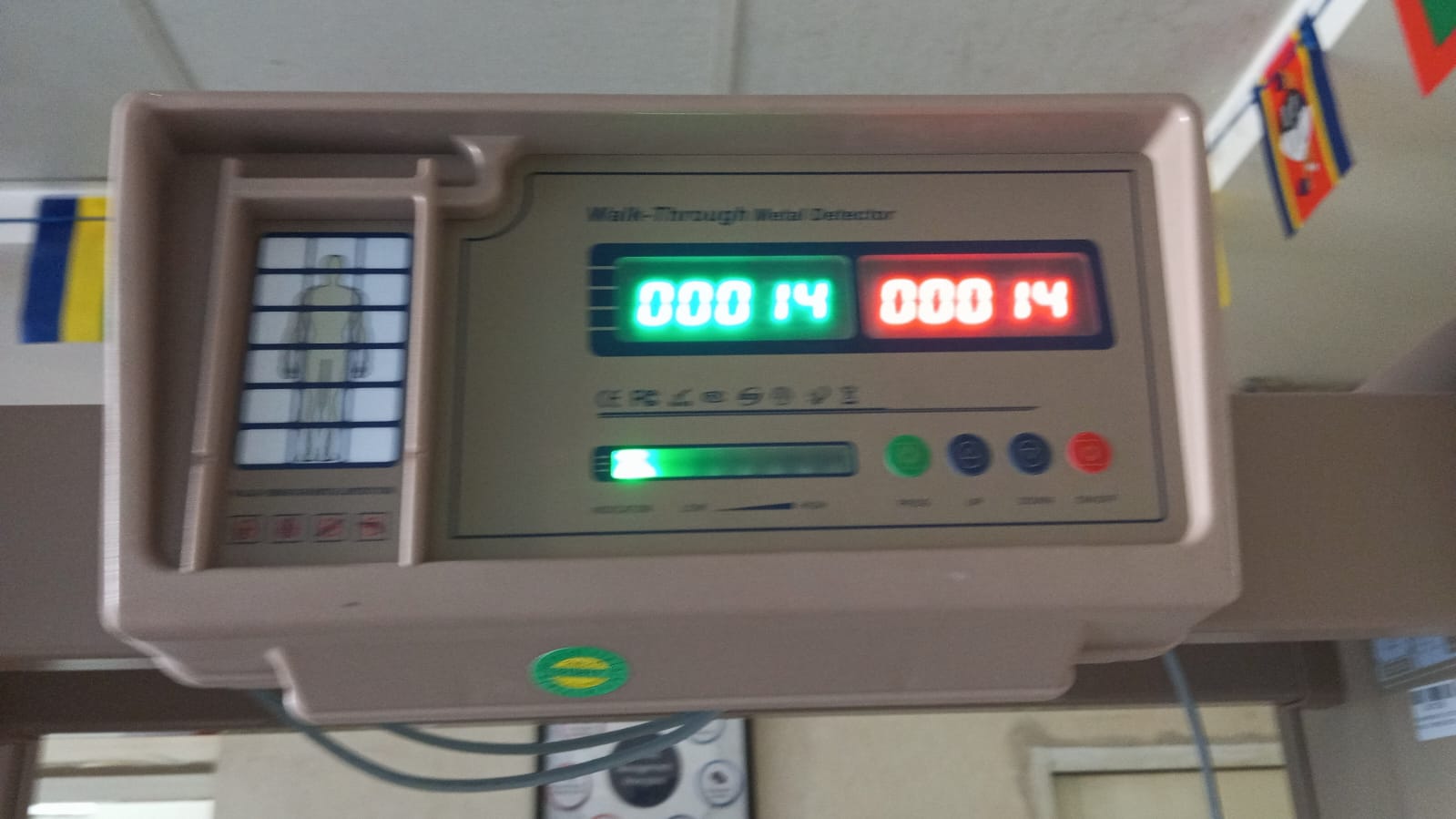

Characteristics & Functions: • Stable performance, 18 Zones. • Based on Auto-set microcontroller. • Detects all types of ferrous and non-ferrous • Security level up to 100 levels. • Sensitivity of each zone from 0 to 200. • Self-calibration starts once powered ON. • 2 Light bars with human body localization • Counter: Record the pass and alarm numbers. • Operational frequency 0-99 can be adjusted automatically. • Waterproof mica pasted on panel & provided ABS plastic boot top bottom (IP 65 Protected). • Harmless to the human body (Heart Pacemaker, Pregnant Women, Magnetic Floppy, Recording Tape etc.). Technical Parameter: • External: approx.2200mm (h) x 860mm (w) X 470mm (d) ±5%. • Passage: approx.2040(h) X 720(w) X 370(d) ±5%. • Net wt.: Around 50 kgs. • Voltage: AC100 - 240V / Frequency: 50 – 60Hz • Power: 12W / Input: - +12V /4.2A • Humidity: 95% Non-condensing. • Workplace Environment: - 20°C to 55°C. • NABL tested • Battery backup optional • Ramp over optional • Specialized counter optional • Computer system optional
