Model : RE-2558
Make : Ravel

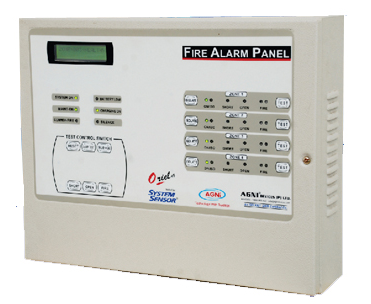

Supply of 8 zone fire alaram control panel ,with 16x2 character LCD Display
Complies with UL-864 AND NFPA-72, Standard .
Type :Conventional
Dimensions : (440W X 340H X 120D)
Color : Red / White
Construction : 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish
IP Rating : IP50
Cable Entry : 11xø19mm Knockout in top of the cabinet
10xø22.25mm Knockout in top of the cabinet
D.C. Output
Supervised 24VDC regulated, 300mA Max.
Common Relays
Type : Form C
No of Relays : 3
Relay Contact Rating : 2Amps @ 30 VDC,
0.5Amps @ 125VAC.
Power Factor : 1.0
Charging Circuit
Charging Voltage 28.2V, ±0.5V
Charging Current 800mA (Max.).
Primary Power
120 – 220VAC ± 10%, 50 Hz, 2.5Amps.
Standby Power
24V D.C (2 Nos of 12v, 12Ah Sealed Lead acid battery).
Quiescent current: 120mA
Approval :UL-Listed
1) Provision to connect zone wise sounder (RE-25ZS)provided in a separate cabinet .
2) provision to connect zone wise relay (RE-25ZC)
